Description

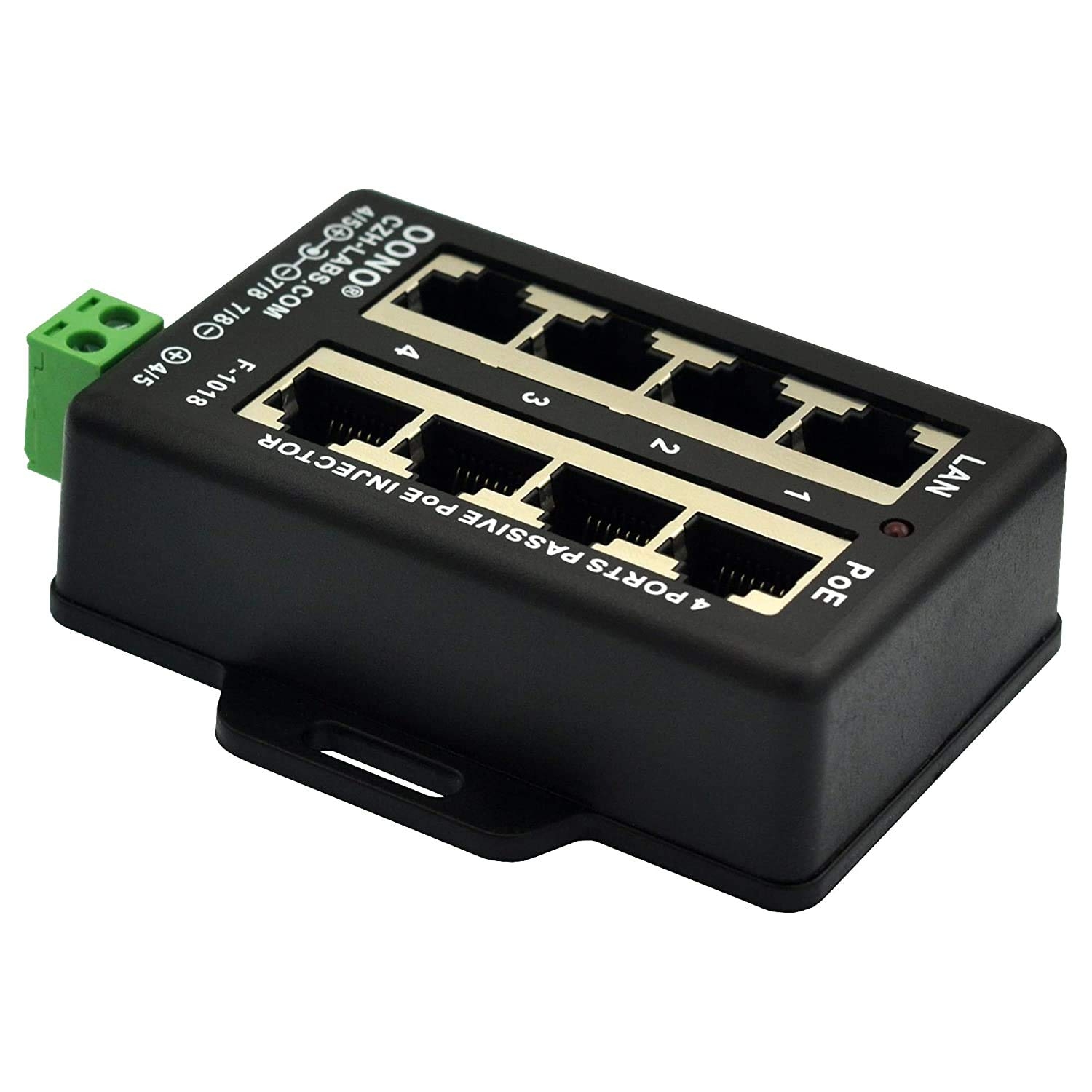

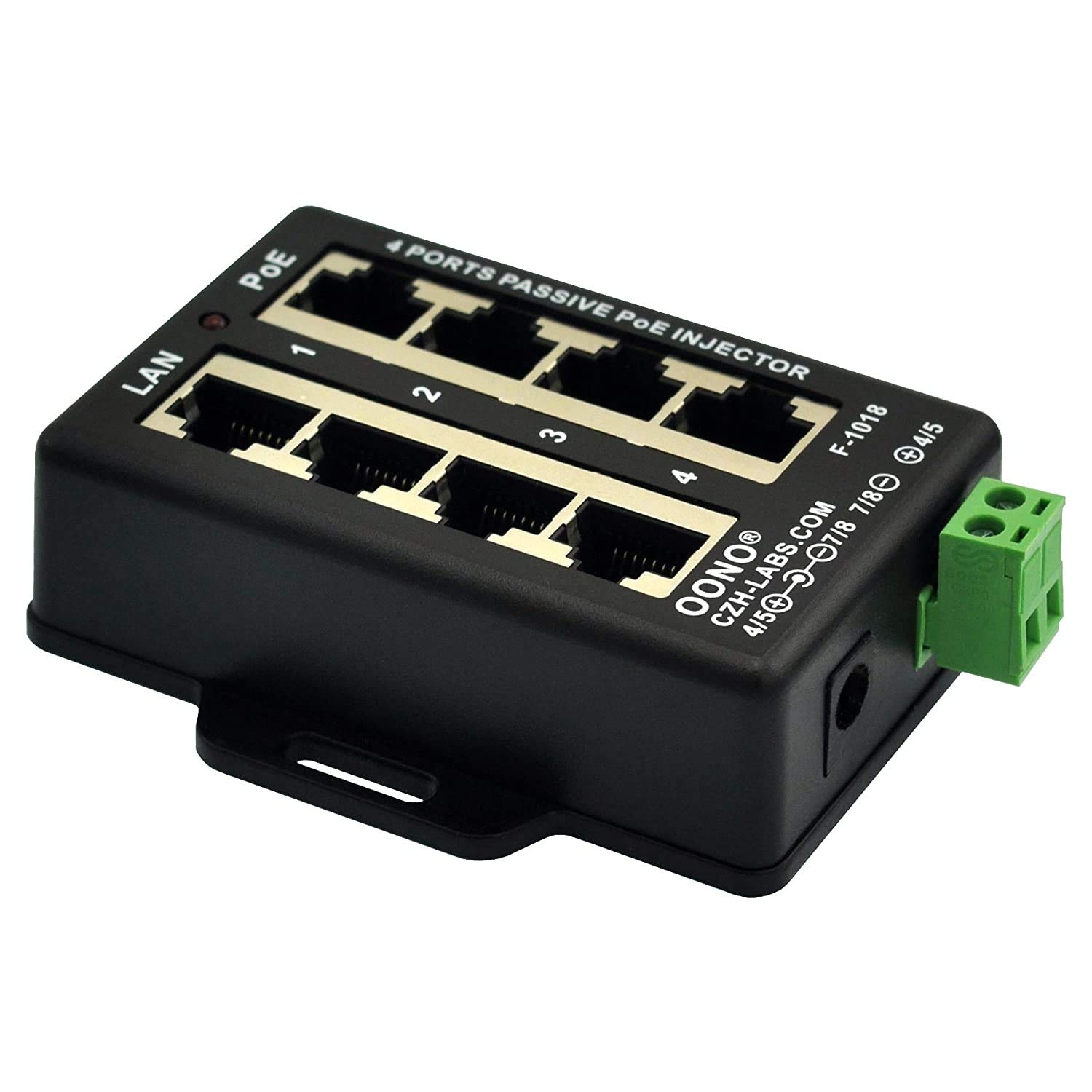

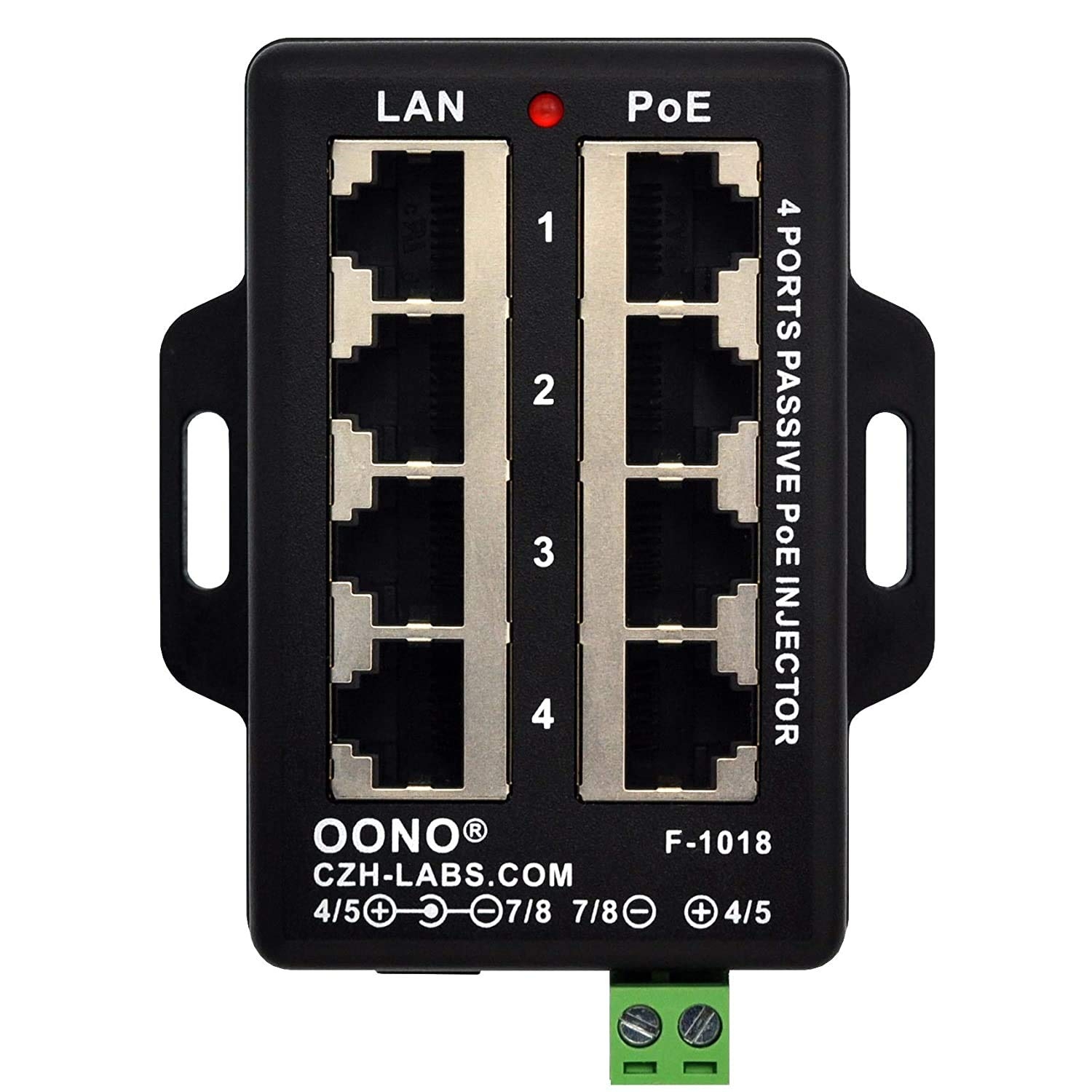

1, Simple power up 4 passive 10/100Mbps PoE devices by one power source application use for Access Points, IP cameras, IP phones, etc.

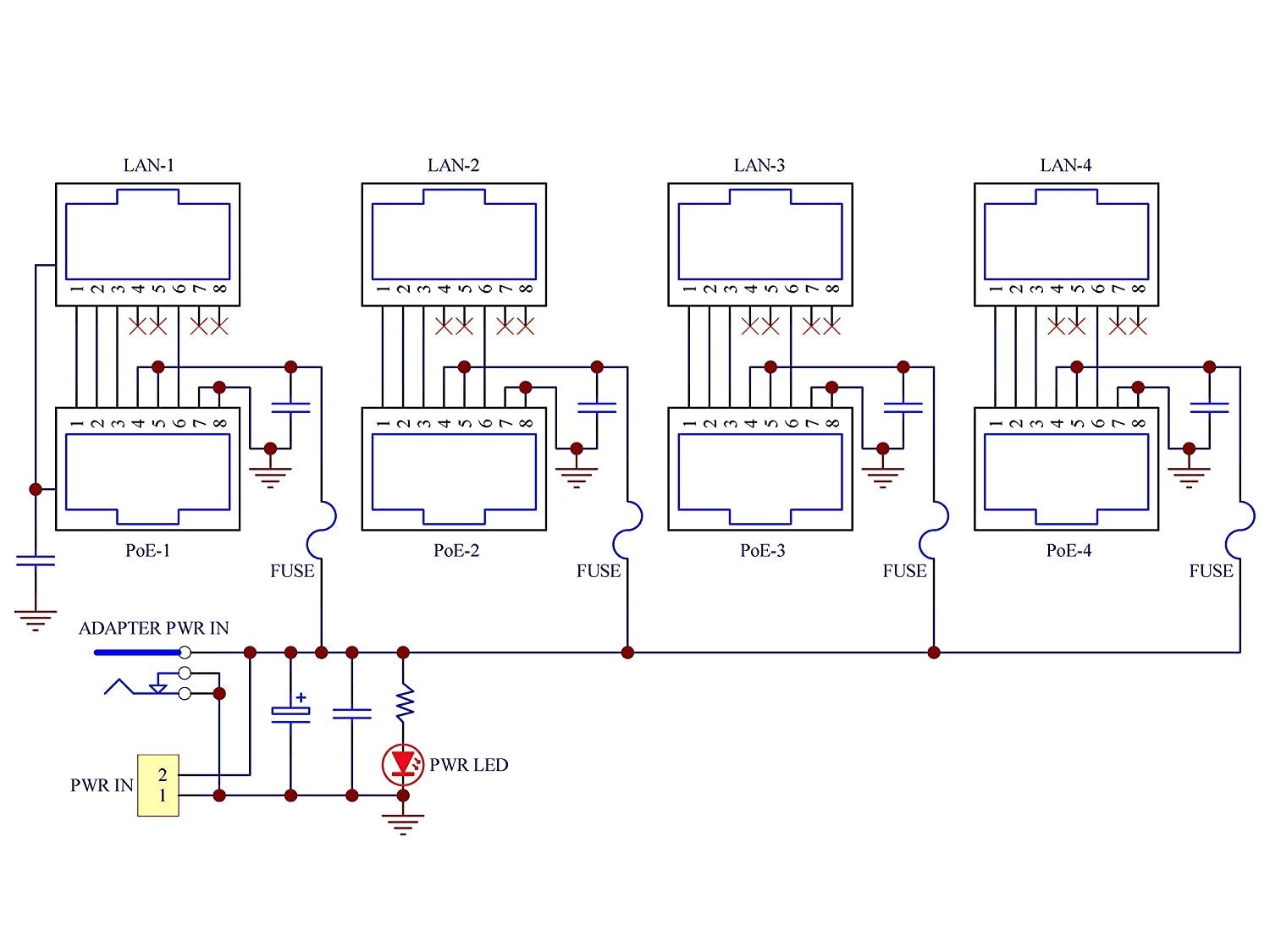

2, Power input for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp / 72V).
3, Power input from 5.5mm x 2.1mm socket jack or pluggable terminal block, LED indication for power supply on/off status.
4, Specifications: power supply input: 12VDC – 60VDC, maximum current 5Amp; LAN Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected; PoE Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -; Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current(per channel): 720mA; Power socket jack polarity: middle pin is positive, diameter 2.1mm.
5, The item not include power adapter.
Specifications:
Power Input: 12VDC – 60VDC, maximum current 5Amp, from socket jack or pluggable terminal block.
LAN Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected.
PoE Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -.
Data Rate: 10 / 100Mbps.
PoE Power Output Maximum Current(per channel): 720mA.
Power socket jack polarity: middle pin is positive, diameter 2.1mm.
Pluggable Terminal Blocks: Pitch 5.0mm/0.197″, Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws – M2.5,steel,Cr3+ Zn plated. Pin header and Cage – Brass.

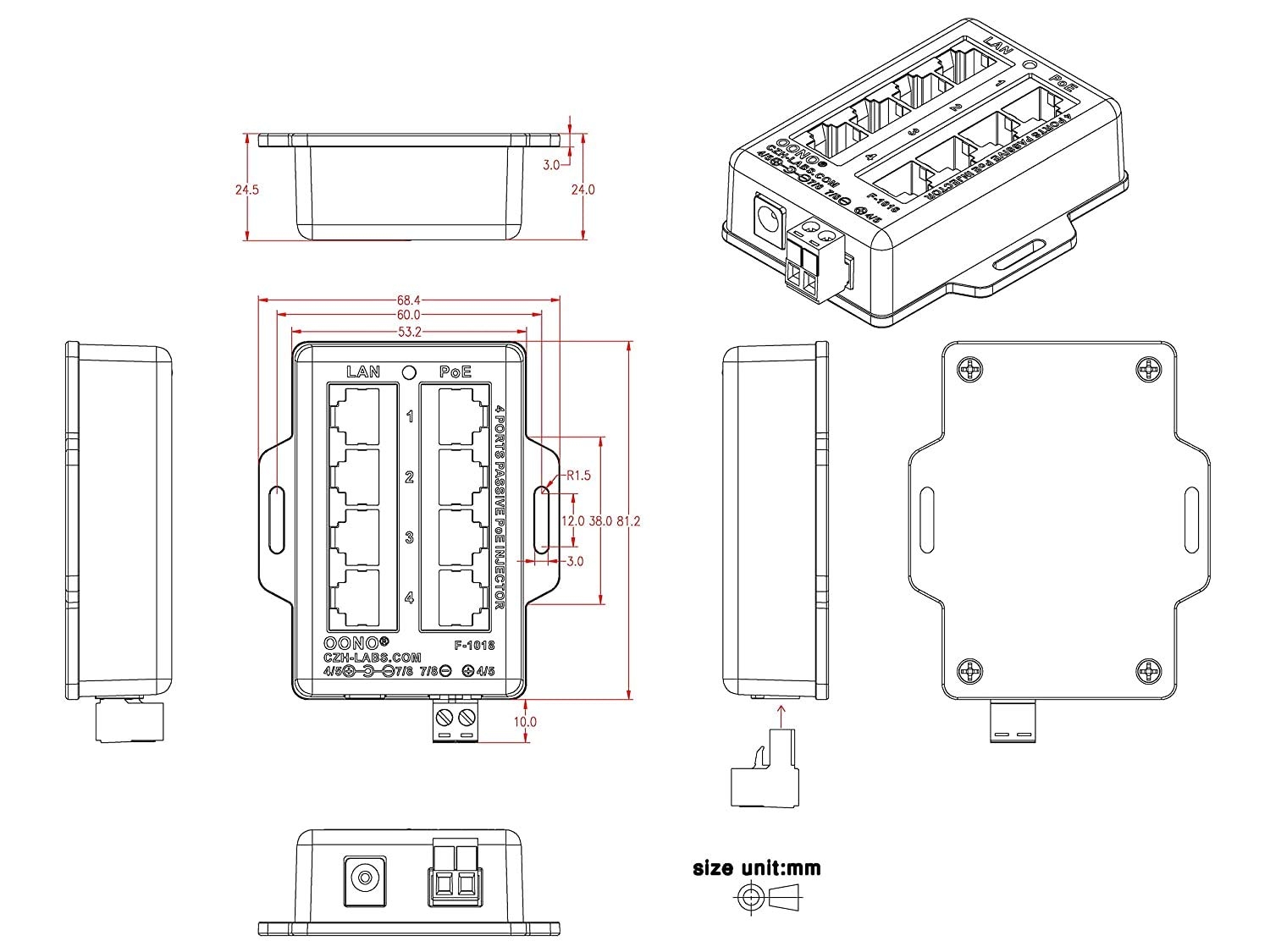

CAD 3D(pdf): https://m.media-amazon.com/images/I/A1D6RKjLkgL.pdf
AJ –
Don’t work.I try multiple POE, I try multiple ethernet cable .and nothing work
dalepres –
Great tool for passive PoEFeed it with 48v power supply (or other voltage, depending on your equipment, Ubiquity, for instance, uses 24v for their network PoE gear. This passes your supplied voltage to your PoE devices on unused pairs in the Ethernet cable.I used this, along with others like it, for powering dozens of PoE surveillance cameras reliably for years.
Roy Arias Ramirez –
PoE InjectorMuy útil y fácil de instalar. Lo trabaja con equipos Ubiquiti Poe 24v
Josh Darby –
VeryDidnt come with power supply :/
